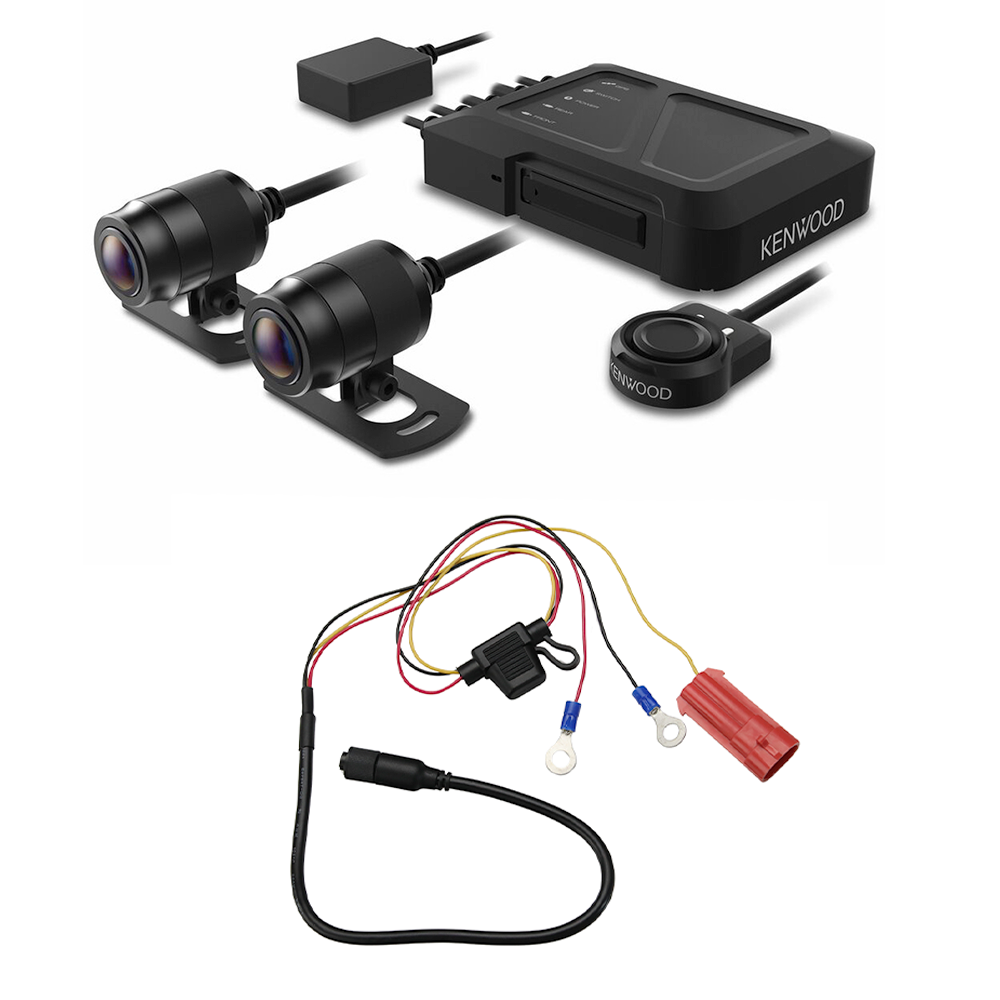

Kenwood STZ-RF200WD Plug & Play Dual Camera Recording System for 2014-2023 Harley Davidson® Touring Motorcycles

Volunteer Audio is now offering a plug-and-play installation harness for the Kenwood STZ front and rear camera system on 2014–2023 Harley-Davidson Touring motorcycles without California emissions equipment.

Our custom-built harness eliminates the need to cut, splice, or tap into the motorcycle’s factory wiring for the camera system’s switched ignition connection.

The harness connects directly to the unused red EVAP/emissions connector located under the seat, providing the proper switched ignition power needed for the Kenwood STZ system. Battery power and ground are supplied through ring terminals that bolt directly to the positive and negative battery posts.

Harness Features:

• Designed for 2014–2023 Harley-Davidson Touring models
• For motorcycles without factory California emissions equipment
• Plugs directly into the unused red EVAP connector under the seat
• Provides switched ignition power for the Kenwood STZ camera system
• Positive and negative connections bolt directly to the battery
• No cutting, splicing, or tapping factory wiring
• Makes installation cleaner, faster, and easier to service
• Built by Volunteer Audio specifically for the Kenwood STZ camera system

IMPORTANT: This harness is not sold separately. It is available only as an option when purchasing the Kenwood STZ camera system from Volunteer Audio.

Add the Volunteer Audio plug-and-play harness to your Kenwood STZ camera system for a cleaner, simpler installation on your 2014–2023 Harley-Davidson Touring motorcycle.

Catch ALL of the ACTION

Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.

2 Megapixel HIGH DEFINITION Recording

Captures clear video from both directions

FRONT & REAR View Recording

The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.

EXTRA WIDE VIEW Camera Coverage

Both cameras cover a 195° (diagonal) extra wide range field of view.

HDR (High Dynamic Range) for Backlighting

Built-in HDR easily records clear images in dark or well lit environments without underexposing or overexposing the image, ensuring superior night vision recording.

EIS (Electronic Image Stablization)

Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its built in image stabilization.

Waterproof & Dustproof

The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low pressure water jets.

MEMORY Included

A 32GB microSD card is included so that you can be ready to catch all of the action right out of the box. The system supports up to a 256GB microSD card (sold separately).

Compact Front & Rear Cameras

Small camera size provides for a stealthy look and easier installation in various locations.

• Motorsports Dual CAM Recording System

• Mounting Style: Top of License Plate Frame

• Viewing Angle: Diagonal & deg; 195°

• Waterproof: Yes

• Nightvision: Yes

• Resolution: 1920 x 1080 (2m)

• Frame Rate: 27.5 fps

• Dimensions (Camera) (W x D x H): 23.5 (Φ) × 34.4 mm 15/16(Φ) x 13/8 inches

• Operating Temp.: -20℃ to 60℃ / -4℉ to 140℉

• 1-year Manufacturer's Warranty
