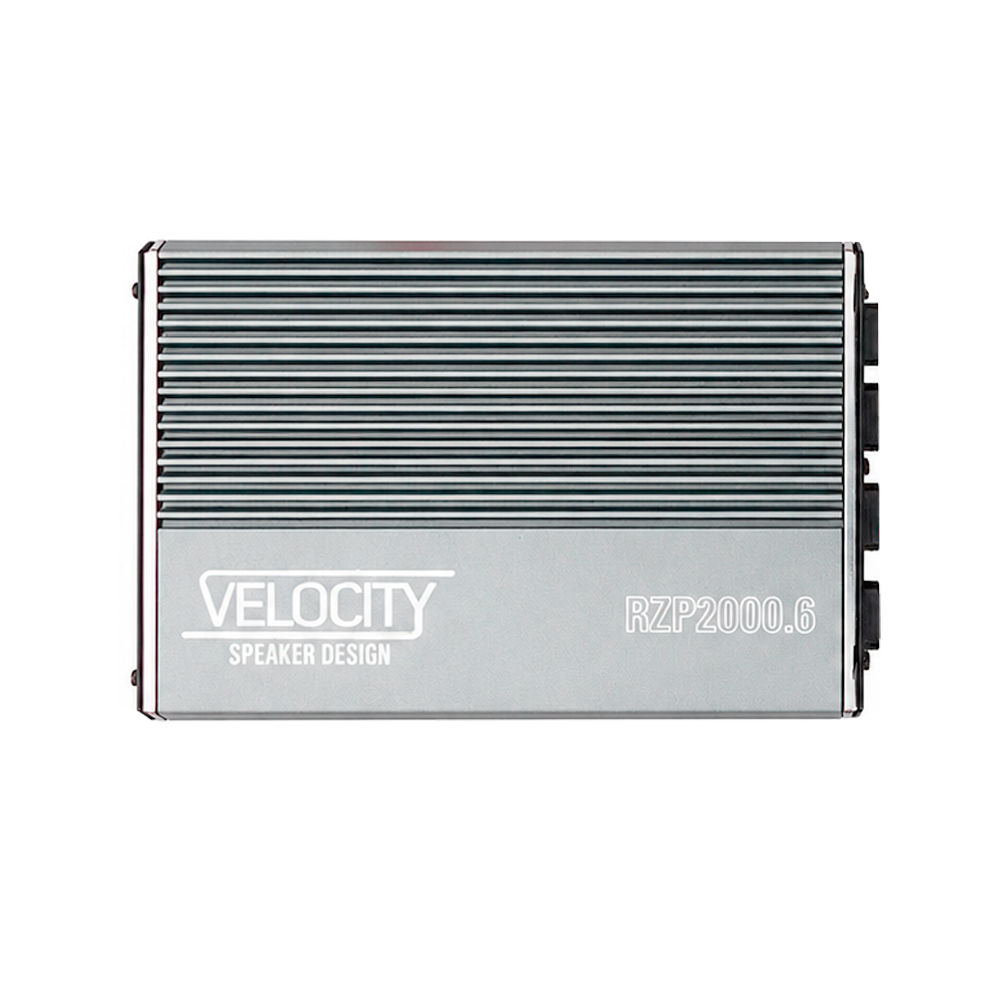

Velocity RZP2000.6 6 Channel Razor Pro Amplifier with Plug & Play Wiring for 2023.5-Up Harley Davidson® Touring Motorcycles

VELOCITY RZP2000.6 6-CHANNEL AMPLIFIER

SIX CHANNELS. MASSIVE POWER. ONE INCREDIBLY COMPACT AMPLIFIER.

The Velocity RZP2000.6 gives us something we’ve wanted for high-end Harley-Davidson audio systems for a long time:

Six channels of serious power in one compact, fully sealed amplifier.

Producing up to 350 watts RMS x 6 at 2-ohm, the RZP2000.6 provides enough power and flexibility to build an enormous motorcycle audio system without filling the bike with multiple amplifiers.

For our largest systems, this amplifier allows us to power up to eight 4-ohm mids and highs from the first four channels while still having two dedicated channels available for subwoofers.

That makes the RZP2000.6 an ideal amplifier for our American Hard Bag / Velocity Modular Bass System.

---

POWER OUTPUT

• 200 watts RMS x 6 @ 4-ohm
• 350 watts RMS x 6 @ 2-ohm
• 600 watts RMS x 3 bridged @ 4-ohm
• Rated at 14.4VDC
• Frequency Response: 20Hz–20kHz
• Total Harmonic Distortion: <0.1%
• Signal-to-Noise Ratio: >85dB

That’s an incredible amount of output from a single compact 6-channel amplifier.

---

UP TO 8 4-OHM MIDS & HIGHS + 2 DEDICATED SUBWOOFER CHANNELS

This is where the RZP2000.6 really separates itself.

The first four amplifier channels can be configured with two 4-ohm speakers in parallel per channel, allowing those four channels to power up to eight 4-ohm mids and highs.

That gives you the ability to power:

• Upper fairing speakers
• Lower fairing speakers
• Tour-Pak speakers
• Saddlebag lid speakers

And even after powering all eight mids and highs, you still have channels 5 and 6 available specifically for your subwoofers.

That means one compact amplifier can power an enormous 8-speaker mids-and-highs system plus a dedicated 2-channel subwoofer system.

This is exactly the type of system the RZP2000.6 was made to power.

---

PERFECT FOR THE AMERICAN HARD BAG / VELOCITY MODULAR BASS SYSTEM

The RZP2000.6 is an outstanding match for our American Hard Bag / Velocity Modular Bass System.

Channels 5 and 6 can be configured for low-pass or full-range operation, allowing them to serve as dedicated high-power subwoofer channels.

The first four channels handle your mids and highs while channels 5 and 6 provide the power for the subs.

Instead of installing multiple amplifiers, we can build an extremely powerful complete motorcycle audio system around one compact 6-channel amplifier.

And this amplifier powers that configuration exceptionally well.

---

TRULY BUILT FOR MOTORCYCLES — FANLESS, SEALED & ALL-WEATHER

The RZP2000.6 was designed for the environment it’s actually going to live in.

Despite the incredible amount of power packed into this amplifier, it uses a fanless thermal design.

There is no cooling fan and no fan opening in the amplifier chassis, allowing the enclosure to remain sealed from the outside environment.

That’s a major advantage on a motorcycle.

Many high-powered amplifiers used in Harley-Davidson applications rely on cooling fans and ventilation openings. Those designs can work well in protected environments, but motorcycles can expose an amplifier to rain, moisture, road spray, dust and dirt.

The Velocity RZP2000.6 is different.

The rugged aluminum chassis acts as the amplifier’s heat sink, allowing it to dissipate heat without requiring an exposed cooling fan or ventilation opening.

Combined with its IP65-rated construction and sealed outboard electrical connections, this creates a high-output amplifier genuinely designed for riders who actually ride.

---

CAUGHT IN THE RAIN? KEEP RIDING.

Motorcycle audio equipment shouldn’t require perfect weather.

Whether you intentionally ride in the rain or simply get caught in an unexpected storm, the RZP2000.6 was designed with the motorcycle environment in mind:

• Fanless cooling design
• No exposed cooling-fan opening
• IP65-rated construction
• Sealed amplifier chassis
• Sealed outboard electrical connections
• Protective end cap covering gains, crossovers and adjustments
• Rugged aluminum chassis designed to dissipate heat
• Built for exposure to the real-world motorcycle environment

This isn’t simply a powerful car amplifier that happens to fit inside a Harley-Davidson.

It’s an all-weather amplifier designed for riders.

---

FULL SYSTEM CONTROL

The RZP2000.6 provides independent controls for the front, rear and subwoofer channel groups.

Controls include:

• Independent front, rear and sub-channel gain adjustment
• High-pass filtering
• Low-pass filtering
• Full-range operation where applicable
• Channels 5 and 6 selectable for low-pass or full-range operation
• Adjustable crossover frequency from 40Hz–400Hz
• High-level or low-level input selection
• DC-offset signal sensing for remote turn-on
• Traditional wired 12V remote turn-on
• Low-level input sensitivity: 0.7V–6V
• High-level input sensitivity: 1.2V–10V
• Thermal, overload and short-circuit protection

This gives you the control necessary to build anything from a conventional 6-channel system to an extremely powerful 8-speaker-plus-subwoofer Harley-Davidson system.

---

AMPLIFIER ONLY — UPGRADED OFC POWER & GROUND HARNESS INCLUDED

This listing is for the Amplifier Only version.

It does not include Volunteer Audio’s bike-specific speaker/input T-harnessing, amplifier mounting components or Volunteer Audio pre-tuning.

It does include our upgraded battery-to-amplifier power and ground harness.

With an amplifier capable of this level of output, proper power delivery is critical.

That’s why every RZP2000.6 includes a properly engineered, upsized Oxygen-Free Copper (OFC) power and ground harness designed to supply the current necessary for the amplifier to reach its full potential.

The included harness features:

• Upsized Oxygen-Free Copper (OFC) power and ground cable
• Proper wire gauge for the amplifier’s current requirements
• Correct cable length for motorcycle installation
• Properly sized fuse protection
• Direct battery positive and negative connections
• Sealed connection to the amplifier
• You don’t have to guess about wire gauge, cable length or fuse size.

Proper power and ground wiring is necessary for this amplifier to produce its full potential, so we include it with the amplifier.

---

IMPORTANT — LITHIUM TITANATE BATTERY STRONGLY RECOMMENDED

The RZP2000.6 is capable of demanding substantially more current than a factory Harley-Davidson battery was designed to provide.

For that reason:

Volunteer Audio strongly recommends upgrading to a Lithium Titanate (LTO) battery when installing the RZP2000.6 in a Harley-Davidson application.

An inadequate battery can cause significant voltage drop and starve the amplifier for power.

That means you’re not getting the performance you paid for, and prolonged operation with an inadequate electrical supply can contribute to premature amplifier failure.

A high-output audio system requires more than high-output amplifiers and speakers.

The electrical system has to support it.

---

AMPLIFIER ONLY MEANS YOU DO THE TUNING

When purchasing the Amplifier Only version, the amplifier’s gains and crossover/filter settings are not pre-tuned by Volunteer Audio.

The installer is responsible for properly configuring:

• Front-channel gains and filters
• Rear-channel gains and filters
• Subwoofer-channel gains and filters
• High-pass crossover settings
• Low-pass crossover settings
• Full-range configuration
• Input configuration
• Channel configuration

With as much power as the RZP2000.6 is capable of producing, proper gain and crossover configuration is extremely important.

Incorrect settings can result in poor sound quality, reduced performance or speaker damage.

---

WANT IT TRULY PLUG-AND-PLAY?

Volunteer Audio also offers the Velocity RZP2000.6 in complete Plug-and-Play Packages for supported Harley-Davidson models.

Our Plug-and-Play Packages add the appropriate:

• Bike-specific speaker/input T-harnessing
• Amplifier mounting components
• Application-specific integration components
• Complete plug-and-play connections

But there’s another major difference:

YOUR AMPLIFIER IS PRE-TUNED BY VOLUNTEER AUDIO.

When the RZP2000.6 is purchased as part of one of our complete Plug-and-Play Audio Packages, we configure the amplifier specifically for the speakers and subwoofers included in that system.

We set the appropriate:

• Gain structure
• High-pass filters
• Low-pass filters
• Mids/high channel configuration
• Subwoofer channel configuration
• Input configuration
• Other system-specific amplifier settings

Your amplifier arrives pre-tuned for the exact audio system you’re purchasing.

When you’re dealing with an amplifier capable of powering eight mids and highs plus two dedicated subwoofer channels, that tuning matters.

No guessing about gains.

No guessing about crossover settings.

No cutting or splicing into the factory speaker wiring.

That’s what Volunteer Audio means by truly plug-and-play.

⸻

AMPLIFIER ONLY VS. VOLUNTEER AUDIO PLUG-AND-PLAY

AMPLIFIER ONLY

Includes:

• Velocity RZP2000.6 amplifier
• Upsized OFC battery power & ground harness
• Proper fuse protection

You handle:

• Speaker/input wiring
• Bike-specific integration
• Amplifier mounting
• Gain and crossover tuning

VOLUNTEER AUDIO PLUG-AND-PLAY PACKAGE

Includes:

• Velocity RZP2000.6 amplifier
• Upsized OFC power & ground harness
• Proper fuse protection
• Bike-specific plug-and-play speaker/input T-harnessing
• Required mounting and integration components

Amplifier pre-tuned by Volunteer Audio specifically for the system being purchased

If you’re an experienced installer who wants to design, wire and tune the system yourself, choose Amplifier Only.

If you want a complete system with the wiring, mounting, integration and amplifier tuning already figured out, choose a Volunteer Audio Plug-and-Play Package.

---

2-YEAR VELOCITY WARRANTY

The Velocity RZP2000.6 is backed by a 2-year Velocity warranty.

Six channels. Up to eight 4-ohm mids and highs. Two dedicated subwoofer channels. Fanless. Sealed. All-weather. One compact powerhouse.
