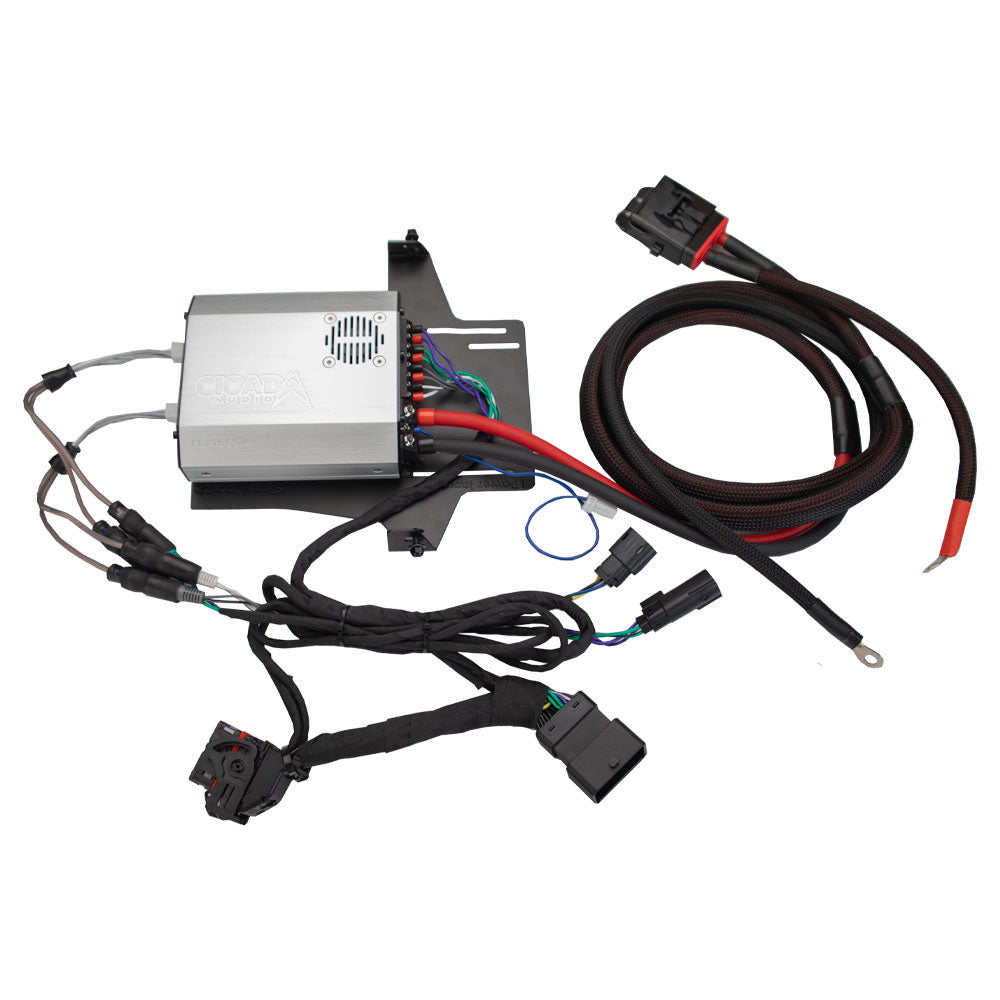

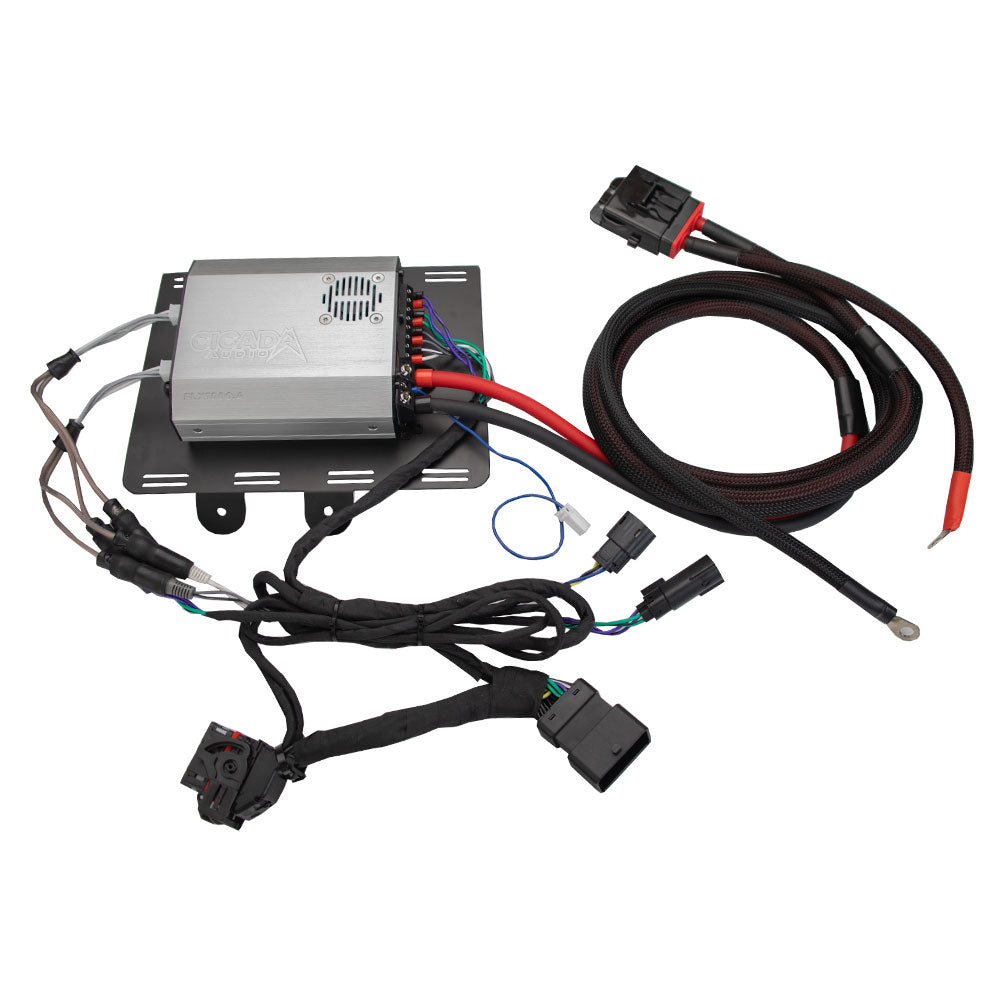

Cicada Audio FLX1000.4 Amplifier With Plug & Play Wiring for Select 2014-2025 Harley Davidson Motorcycles ( FLX 10004 )

For your convenience, we offer this amplifier pre-wired for factory Harley radios (flash required), as well as aftermarket models.

We have completed all the hard work for you, making this a true plug and play setup! We have pre-set the gains and high pass filters to exactly what they need to be for the radio you have! We've also connected the power and ground wires, so all you have to do is plug into the radio harness and run the power and ground wires to your battery, then your system will be rockin'!

4 CHANNEL POWER AMPLIFIER

• • 4 X 150 WRMS into 4 ohms @ 12.5 Vdc
  • 4 X 168 WRMS into 4 ohms @ 14.4 Vdc
  • 4 X 220 WRMS into 2 ohms @ 12.5 Vdc
  • 4 X 254 WRMS into 2 ohms @ 14.4 Vdc

  BRIDGED MONO – 2 CHANNEL

  • 2 X 461 WRMS into 4 ohms @ 12.5 Vdc
  • 2 X 530 WRMS into 4 ohms @ 14.4 Vdc
  • Frequency response – 20-20,000 +/- 3dB THD < 0.5%
  • Operating Voltage: 8V – 16V
  • Current Draw (Music): 60 A
  • Current Draw (Max): 116 A
  • Recommended Fuse (Music): 120 A
  • Total Efficiency: 79%
  • Damping Factor: 200
  • SNR: 91dB
  • Crossover LPF/FULL/HPF: 30 TO 300Hz
  • Slope:12dB per octave
  • Gain: 0.2V – 12 Vac
  • Turn-On Configuration: REM/DC
  • THD + N (10% Rated Power): 0.1%
  • Product Dimensions (Inches / Millimeters): 6.0 x 4.9 x 2.0 in / 152 x 124 x 51 mm
