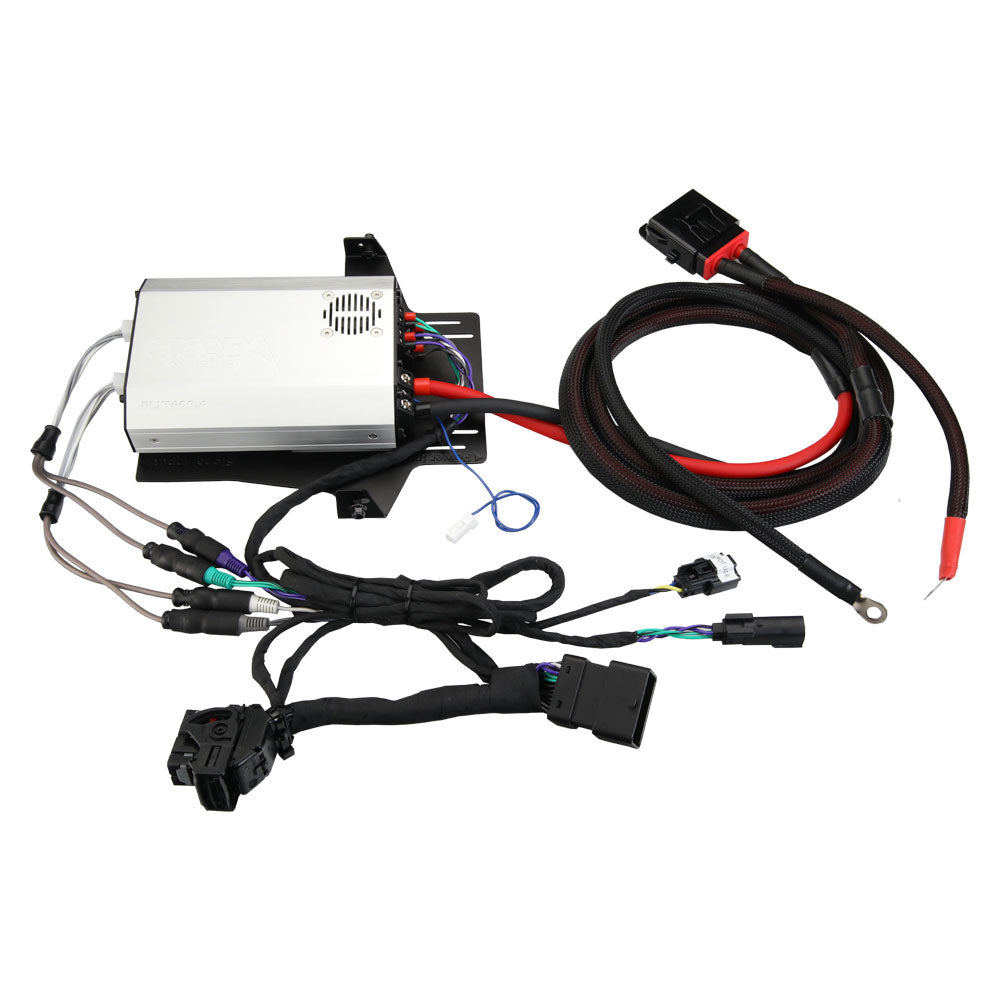

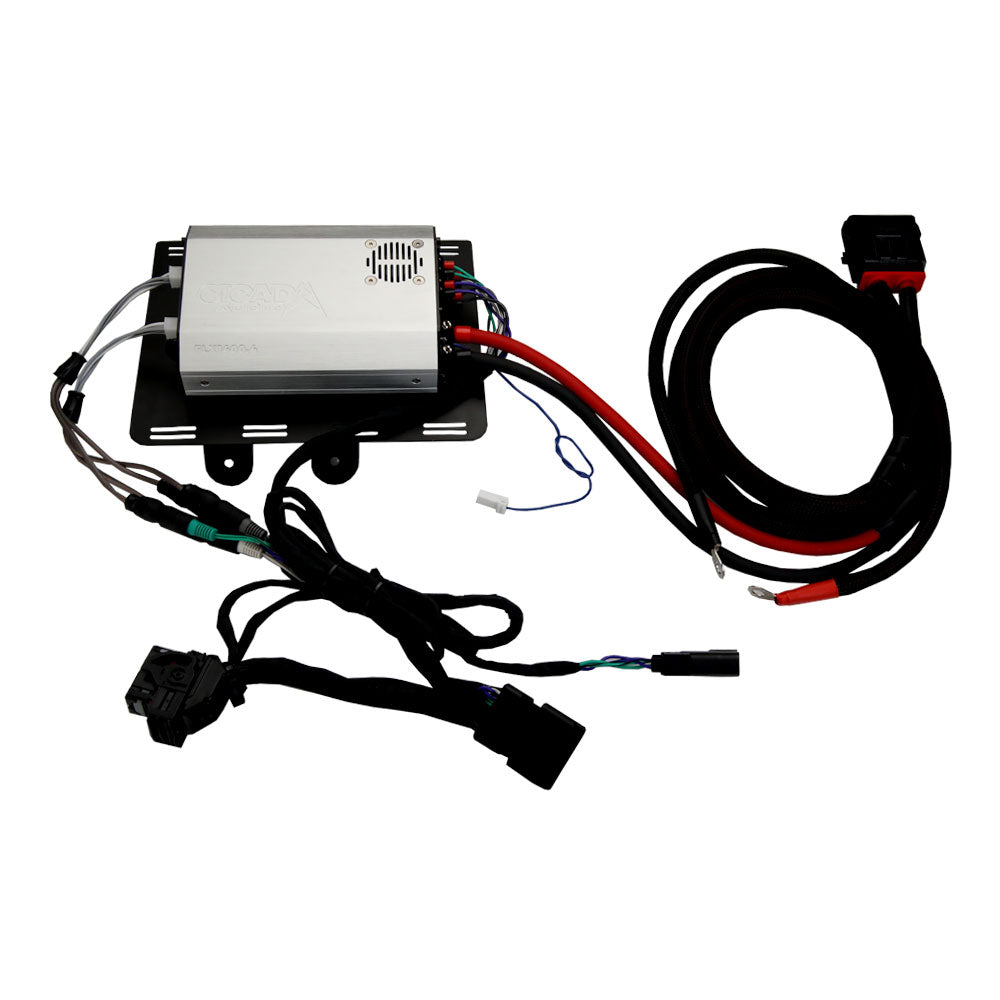

Cicada Audio FLX1400.4 Amplifier With Plug & Play Wiring for Select 2014-2023 Harley Davidson® Motorcycles

For your convenience, we offer this amplifier pre-wired for factory Harley radios (flash required), as well as aftermarket models.

We have completed all the hard work for you, making this a true plug and play setup! We have pre-set the gains and high pass filters to exactly what they need to be for the radio you have! We've also connected the power and ground wires, so all you have to do is plug into the radio harness and run the power and ground wires to your battery, then your system will be rockin'!

4 CHANNEL POWER AMPLIFIER

Requires 4 AWG Power Wire – HDPG4K

• 4 X 200 WRMS into 4 ohms @ 12.5 Vdc
• 4 X 225 WRMS into 4 ohms @ 14.4 Vdc
• 4 X 300 WRMS into 2 ohms @ 12.5 Vdc
• 4 X 350 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

• 2 X 600 WRMS into 4 ohms @ 12.5 Vdc
• 2 X 700 WRMS into 4 ohms @ 14.4 Vdc
• Frequency response – 20-20,000 +/- 3dB THD < 0.5%
• Operating Voltage: 8 V – 16 V
• Current Draw (Music): 50 A
• Current Draw (Max): 220 A
• Recommended Fuse (Music): 120 A
• Total Efficiency: 79%
• Damping Factor: 200
• SNR: 91 dB
• Crossover LPF/FULL/HPF: 30 TO 300Hz
• Slope:12dB per octave
• Gain: 0.2V – 12 Vac
• Turn-On Configuration: REM/DC
• THD + N (10% Rated Power): 0.1%
• Product Dimensions (Inches / Millimeters): overall 7.9 x 4.9 x 2.0 in / 200 x 125 x 51 mm chassis only – 6 5/8 x 4.9 x 2.0 in / 168 x 125 x 51 mm
