Cicada Audio FLX700.4 Amplifier With Plug & Play Wiring for Select 2014-2025 Harley Davidson Motorcycles
Cicada Audio FLX700.4 Amplifier With Plug & Play Wiring for Select 2014-2025 Harley Davidson Motorcycles is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

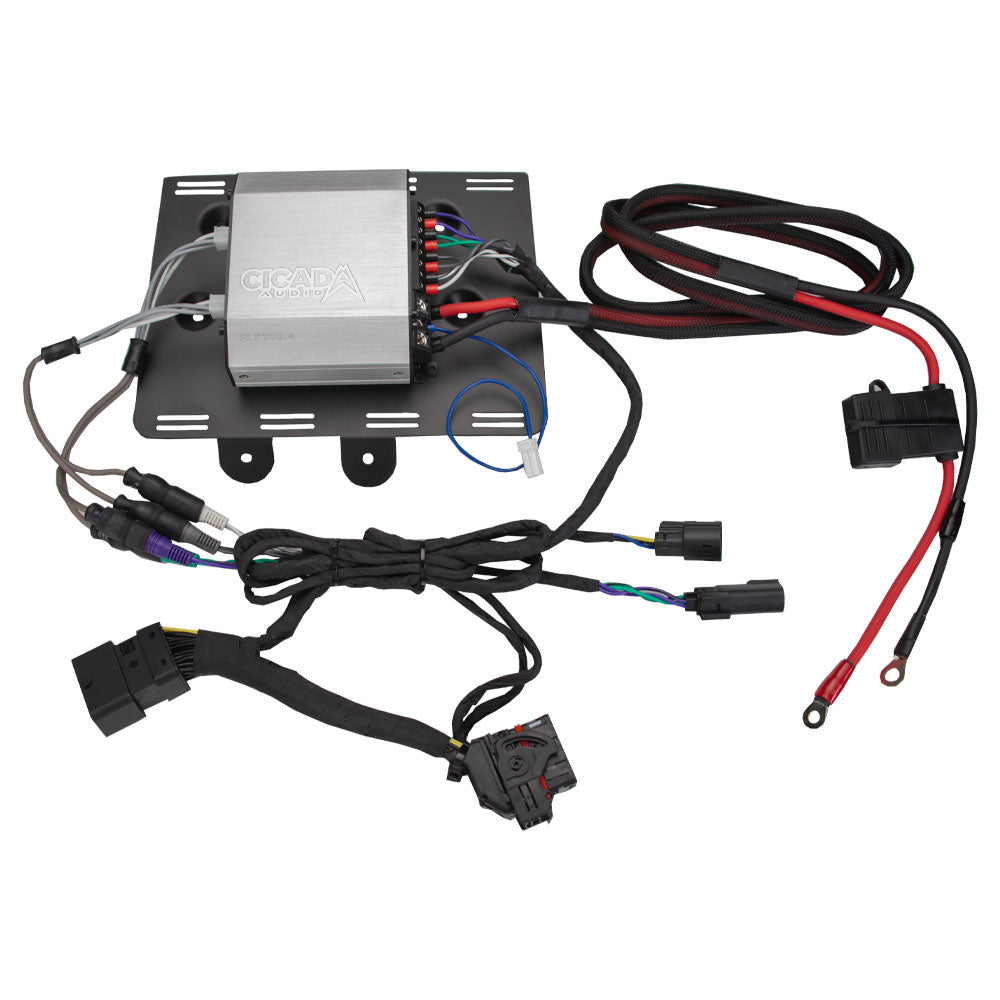

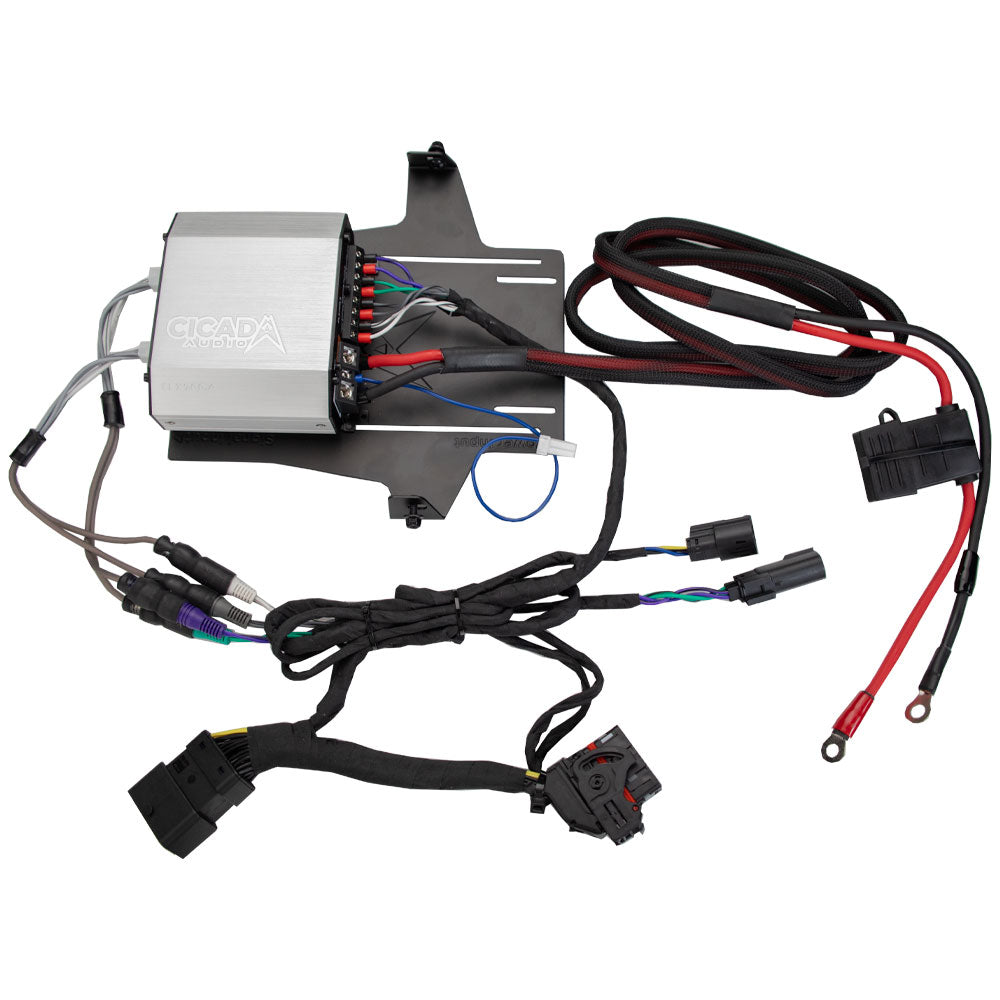

For your convenience, we offer this amplifier pre-wired for factory Harley radios (flash required), as well as aftermarket models.
We have completed all the hard work for you, making this a true plug and play setup! We have pre-set the gains and high pass filters to exactly what they need to be for the radio you have! We've also connected the power and ground wires, so all you have to do is plug into the radio harness and run the power and ground wires to your battery, then your system will be rockin'!
4 CHANNEL POWER AMPLIFIER
- 4 X 110 WRMS into 4 ohms @ 12.5 Vdc
- 4 X 128 WRMS into 4 ohms @ 14.4 Vdc
- 4 X 140 WRMS into 2 ohms @ 12.5 Vdc
- 4 X 175 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
- 2 X 261 WRMS into 4 ohms @ 12.5 Vdc
- 2 X 302 WRMS into 4 ohms @ 14.4 Vdc
- Frequency response – 20-20,000 +/- 3 dB THD < 0.5%
- Operating Voltage: 8 V – 16 V
- Current Draw (Music): 60 A
- Current Draw (Max): 116 A
- Recommended Fuse (Music): 120 A
- Total Efficiency: 79%
- Damping Factor: 200
- SNR: 91dB
- Crossover LPF/FULL/HPF: 30 TO 300 Hz
- Slope:12 dB per octave
- Gain: 0.2 V – 12 Vac
- Turn-On Configuration: REM/DC
- THD + N (10% Rated Power): 0.1%
- Product Dimensions (Inches / Millimeters): 4.5 x 4.9 x 2.0 in / 114 x 124 x 51 mm
