Hertz | SKU:
SX165NEO
Hertz SX165NEO 6.5" Full-Range Coaxial Speakers for Upper Fairing, Lower Fairing or Tour Paks on Harley Davidson® Motorcycles
$35999 USD
$44999
Unit price
/
Unavailable
Taxes, discounts and shipping calculated at checkout.
Hertz SX165NEO 6.5" Full-Range Coaxial Speakers for Upper Fairing, Lower Fairing or Tour Paks on Harley Davidson® Motorcycles is backordered and will ship as soon as it is back in stock.
Speaker Features

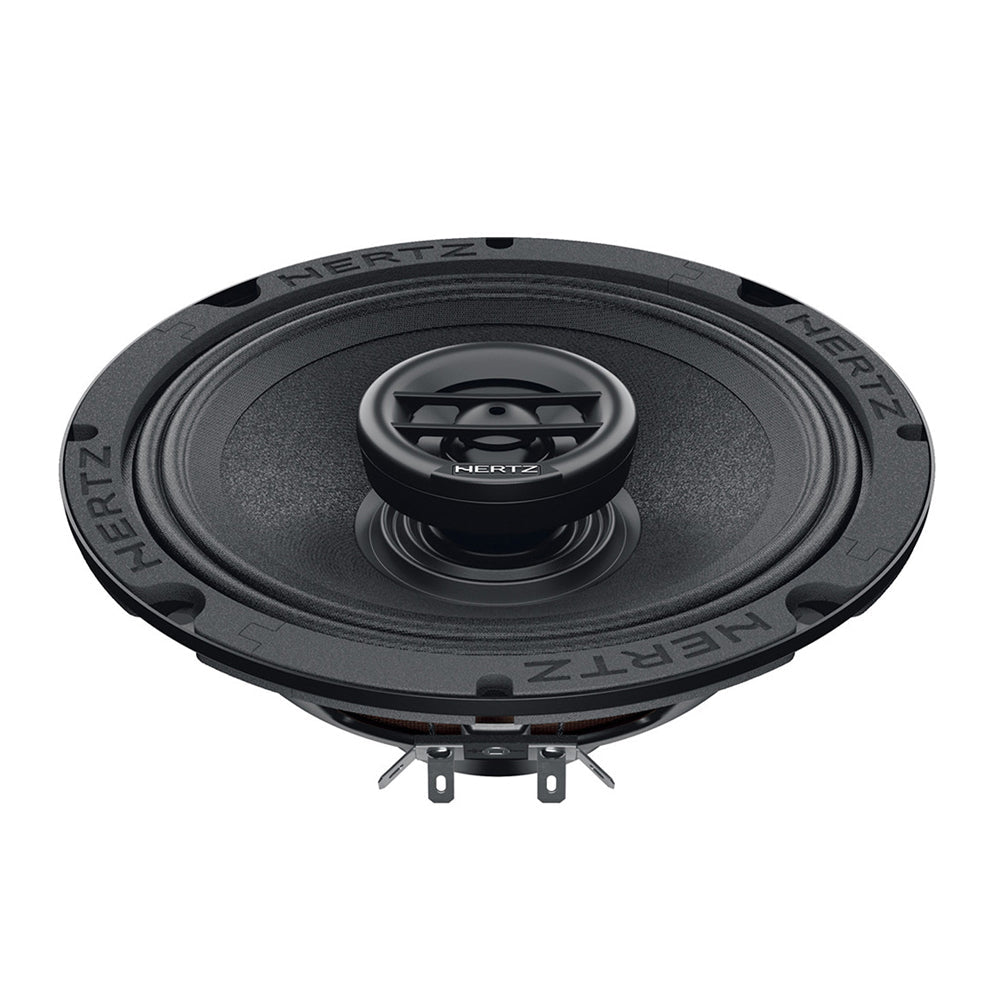

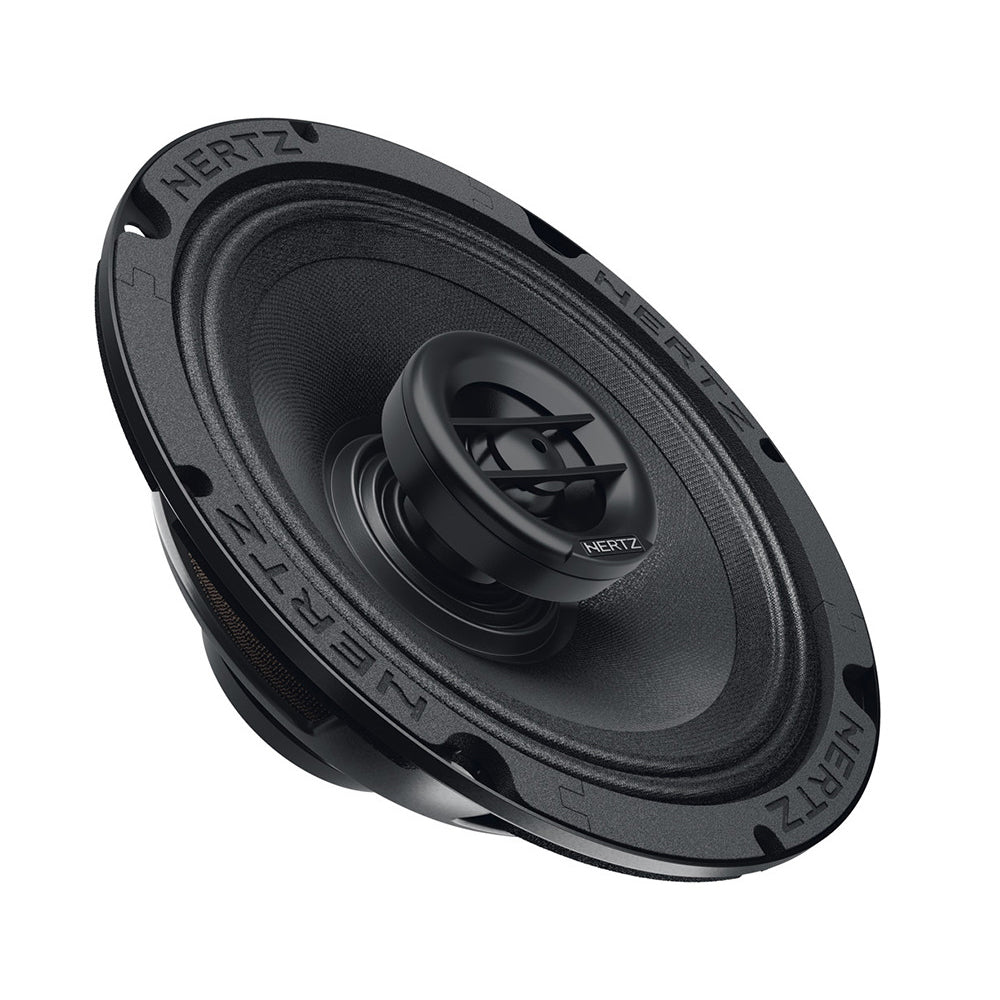

Hertz SX 165 NEO Full-Range Coaxial Speaker
Totally new NEO SPL coaxial SX 165 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 165 NEO features a large Hi-SPL 1.4” PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.
1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
4. Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Hertz SX 165 NEO Full-Range Coaxial Speaker | |||||
| GENERAL | |||||
| Speaker Design | 2-Way | ||||
| DC Resistance (Ω) | 4 Ohm (Ω) | ||||
| Peak Power (Watts) | 200W | ||||
| Continuous Power (RMS) | 100W | ||||
| Sensitivity | 96.5dB | ||||
| Effective Frequency Range | 100-20k | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 5-3/4 (146.05 mm) | ||||
| Top Mount Depth | 2-3/8" | ||||
| Bottom Mount Depth | 2-3/4" | ||||
| Grille | No | ||||
| Warranty | |||||
